Huixian Xinda Textile Machinery Parts Co., Ltd. provides G1515-4107 warp feeding adjustment rod guide foot 56 weaving machine support foot, which is an internal warp feeding accessory for weaving machines. The 1511 weaving machine uses C15, GA615 and 1515 models of weaving machines use G1515-4107 (borrowed parts), made of gray pig iron HT15-32, connected to 3245 reed seat foot on 1515 weaving machine, and connected to 3101 on GA615 weaving machine. The usage of each weaving machine is 1 piece.

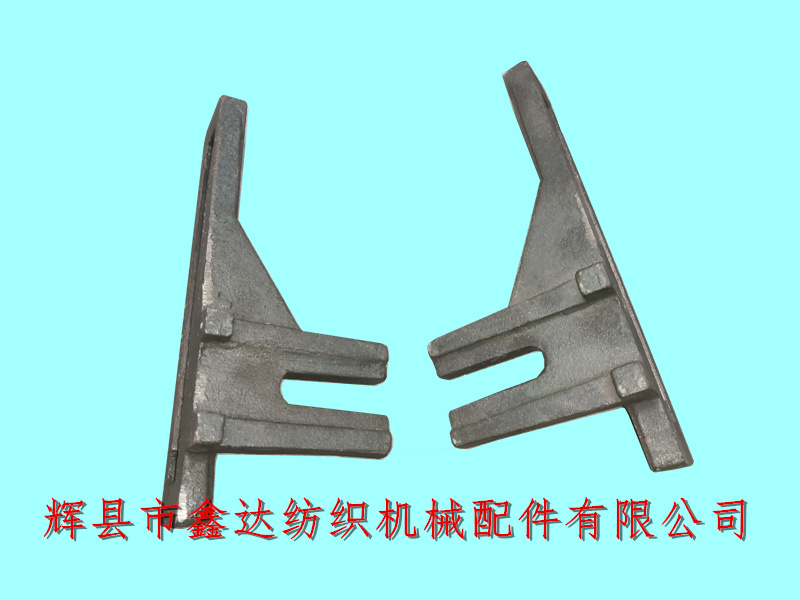

The above picture is a front view of the G1515-4107 warp feeding guide foot. The product is divided into left and right hands. The inner length of the middle groove is 140mm, and the upper surfaces on both sides are polished. The sliding core shaft and nylon sleeve 41117 are installed on the inner side of the groove. The U-shaped card slot of the support foot is fixed on the reed seat foot of the weaving machine.

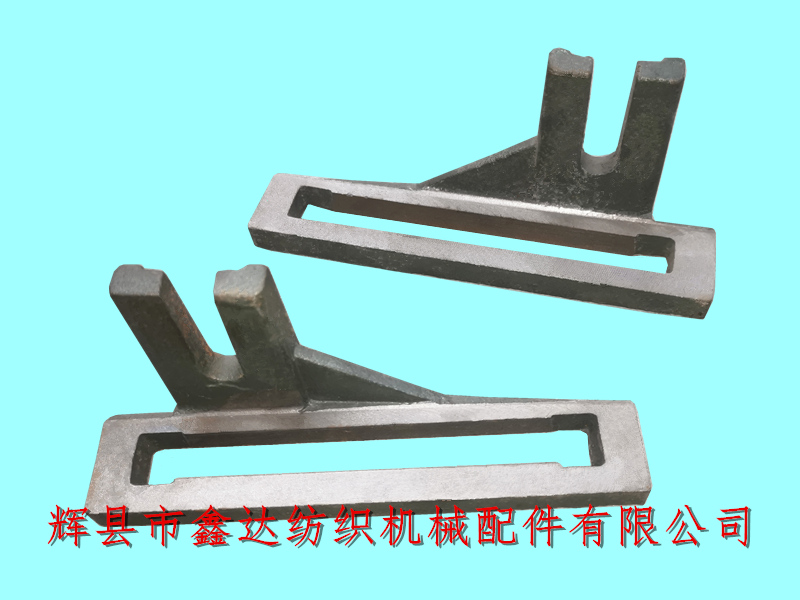

The above picture is a side view of the G1515-4107 loom support legs, with one on the left hand and one on the right hand. This loom support leg is mainly used in the inner warp feeding device of the old-fashioned 56 loom. In the early design, the warp feeding adjustment rod used a flat iron shape as traction, and the flat iron drove the core shaft to slide up and down in the groove.

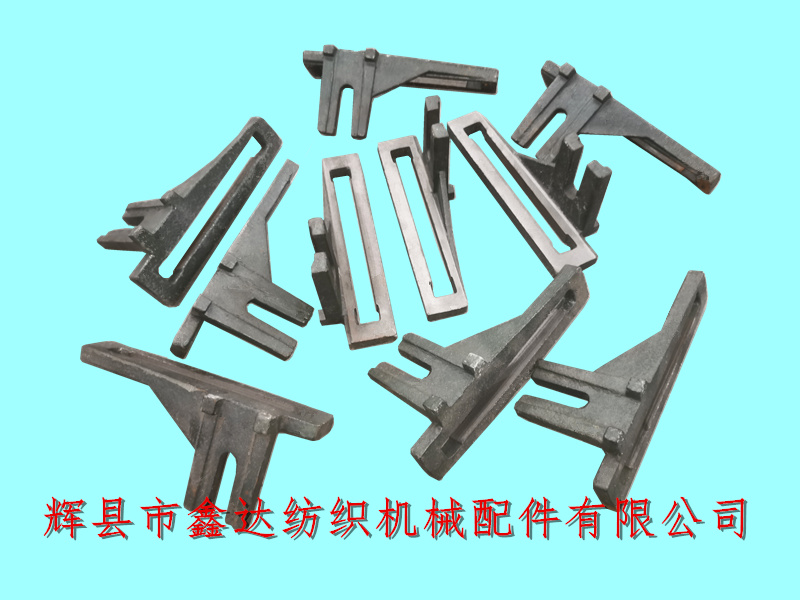

The legs of the 1515 loom support 4107 are slightly larger than those of the C15, with a color of dark green and 10 pieces per string (5 on each side). If textile factories and manufacturers in various cities need to purchase 1515 support feet, G1515 weaving machine support feet, inner warp accessories, G1515 weaving machine spare parts and other products, please contact Mr. Yang from our company for consultation.
