Huixian Xinda Textile machinery accessories has been engaged in the production and sales of textile accessories accessories for 20 years. We provide all kinds of coreless shuttles (wood shuttles, nylon shuttles, composite shuttles) and supporting coreless weft tubes (wood weft tubes, plastic weft tubes, PVC tubes). We have a complete textile coreless shuttle matching system, with about 100 kinds of products, covering all kinds of weaving shuttles in the textile industry.

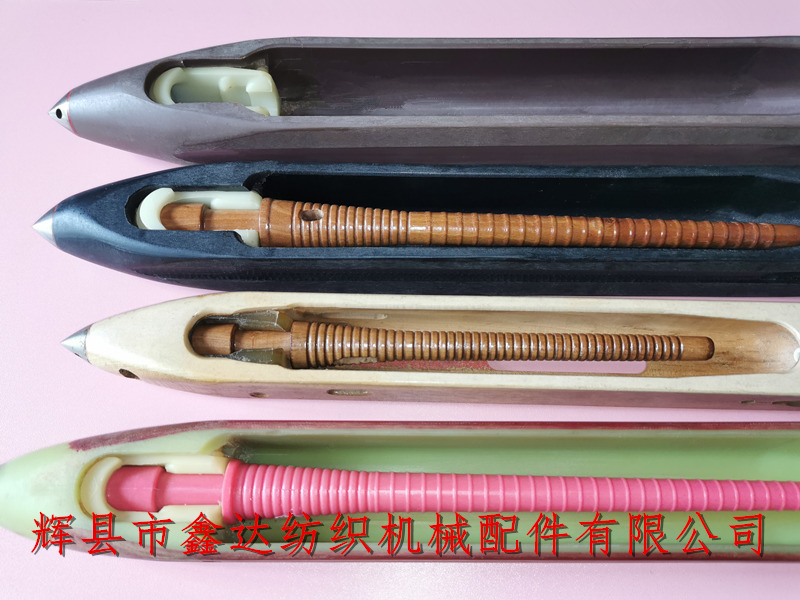

The picture above shows TS-9 shuttle, which is divided into nylon shuttle and composite shuttle. The shuttle is 390mm long, 41.2mm wide (red) and 41.7mm wide (black) at the bottom, 31.5mm high and 25cm long weft tube.All kinds of coreless shuttle (wood shuttle, nylon shuttle, composite shuttle).

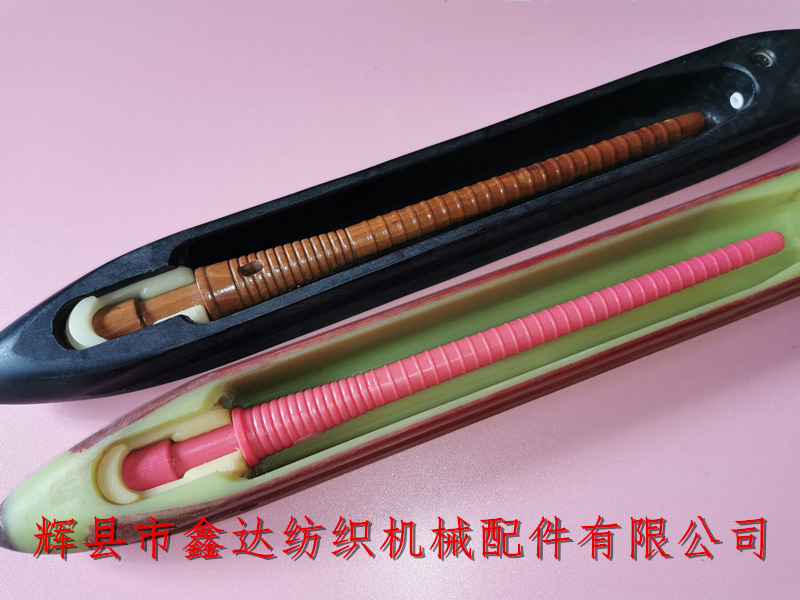

The collet used for the shuttle on the right in the figure above is of double slot type. The total length of the shuttle is 41cm, the outer width of the shuttle bottom is 47.5mm, and the height of the shuttle is 39mm. It is also a kind of coreless shuttle, and the width of the inner cavity is 33mm. It belongs to three porcelain eye shuttle.
The third wooden shuttle in the picture above is a silk shuttle wrapped with red steel paper on all sides. The length of the inner weft tube is 19 cm, the length of the shuttle is 350 mm, the outer width of the shuttle bottom is 34.5 mm, the height of the shuttle is 23.5 mm, and the inner width is 23.5 mm.

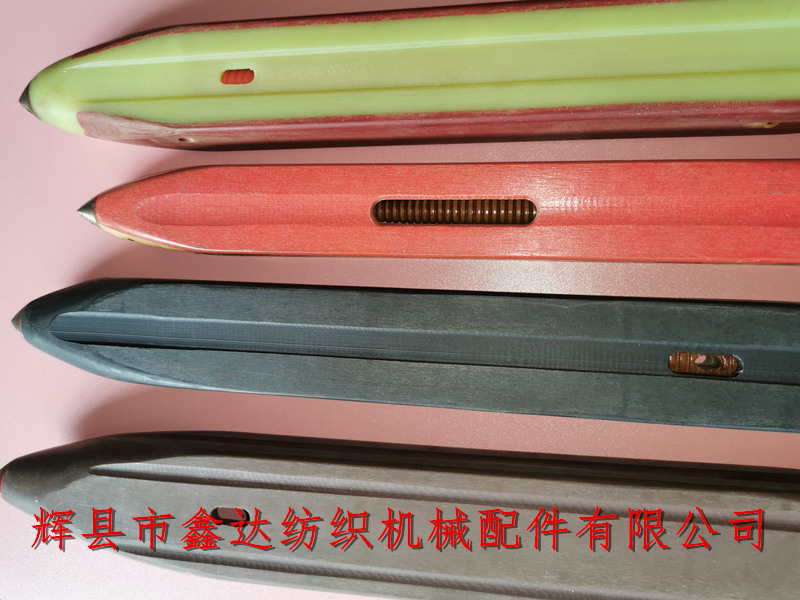

The figure above shows the back of each type of shuttle, with different grooves. The weft detection groove of TS series shuttle is located on the shuttle bottom plate, including TS-7, TS-8, TS-6, TS-9 and other models and specifications. The starting quantity of special wooden shuttles is 300 pieces, which is required to be of the same model and specification. It can be combined with left hand and right hand for 300 pieces.
